RS485 4-20mA Digital Flow Meter Anti Corrosive Magnetic Flowmeter
Description of RS485 4-20mA Digital Flow Meter Anti Corrosive Magnetic Flowmeter
RS485 4-20mA Digital Flow Meter Anti Corrosive Magnetic Flowmeter is developed by our company using the most advanced technology. The electromagnetic converter core uses a high-speed central processing unit. The water flow meter calculation speed is very fast, the accuracy is high, and the measurement performance is reliable. The electromagnetic water flow meter converter circuit design adopts international advanced technology. The electomagnetic flowmeter sensor adopts non-uniform magnetic field technology and special magnetic circuit structure, the magnetic field is stable and reliable, and the volume is greatly reduced, the repetition is reduced, and the water flow meter has the characteristics of small size and light weight.
Specification of Water RS485 4-20mA Digital Flow Meter Anti Corrosive Magnetic Flowmeter
| Item | RS485 4-20mA Digital Flow Meter Anti Corrosive Magnetic Flowmeter |
| Item | electromagnetic digital flow meter |
| Size(mm) | DN15mm---DN3200mm |
| Medium | water, conductive liquid, slurry |
| Medium Temperature | Chloroprene Rubber:-10-60℃: PTFE:-10-120℃ |
| Installation Type | Flange connection, Insert type, sanitary clamp type, thread connection. |
| Lining | , polychloroprene rubber, polyurethane, polyperfluoroethylene propylene (F46) |
| Electrode material | 316L, Hastelloy C, Hastelloy B, titanium, tantalum, platinum |
| Grade of Accuracy | 0.2%, 0.5% |
| Flow Velocity | ≤15m/s |
| Rated pressure | Standard 1.0MPa, 1.6MPa, 2.5MPa, 4MPa |
| Cable Interface | M20*1.5 or G1/2 Female Thread etc. |
| Sealed | IP65, IP68 |
| Output Signal | 4-20mA Current or Pulse |
| Communication | RS485 Protocol Modbus protocol |
| Power Supply | 220VAC, 24VDC |
| Explosion proof | ExⅡBT6 Gb |
Application of RS485 4-20mA Digital Flow Meter Anti Corrosive Magnetic Flowmeter
electromagnetic water flow meter are widely used in chemical and chemical fiber, food, paper, sugar, mining and metallurgy, water supply and drainage, environmental protection, water conservancy and hydropower, steel, petroleum, pharmaceuticals and other industrial fields to measure various Kinds of acid, alkali, salt solution, mud, mineral pulp, paper pulp, coal water slurry, corn syrup, fiber slurry, grain slurry, lime milk, sewage, cooling raw water, water supply and drainage, brine, hydrogen peroxide, beer, wort, various beverages The volume flow of conductive liquid media such as black liquor and green liquor.

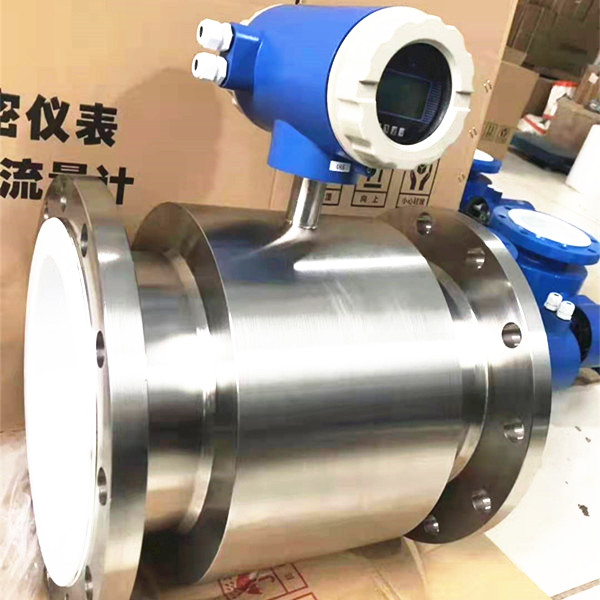

Detaild picture of RS485 4-20mA Digital Flow Meter Anti Corrosive Magnetic Flowmeter
Feature of RS485 4-20mA Digital Flow Meter Anti Corrosive Magnetic Flowmeter
Fully digital processing, anti-interference ability, reliable measurement, high accuracy flow measurement range up to 1500: 1
Ultra-Low EMI switching power supply for supply voltage variation range, anti-EMI performance.
16-bit embedded microprocessors, computing speed, high precision, programmable low-frequency square wave excitation frequency and improve the stability of the flow measurement, low power consumption.
using SMD devices and surface mount (SMT) technology, circuit reliability.
No moving parts inside the pipe l, unimpeded flow of parts, measuring almost no additional pressure loss.
Range in the field can be modified online according to the actual needs.
measurements and velocity distribution, the physical parameters of the fluid pressure, temperature, density, viscosity and the like.
High-resolution backlit LCD display, full Chinese menu, easy to use, simple to operate, easy to understand.
have RS485, RS232, Hart, and Modbus and other digital communication signal output. (Optional)
has a self-test and self-assertion.
total hourly recording function to record the total flow in units of hours for hourly metering system (optional)
have three internal totalizer can show the cumulative amount of forward and reverse cumulative amount of the difference between the volume totalizer, the internal power-down features not always, can record 16 power-down times. (Optional)
IR handheld operator, 115KHZ communication speed, long-distance non-contact operation of all functions converter (optional)
